Wind Alarm & Switch by Inspeed

WIND ALARM & SWITCH - Dual Relay Wind Switching Device

The Wind Alarm & Switch is a fully programmable controller for turning one or two electronic devices on or off based on the speed of the wind. It is manually programmed - no computer or software required. Includes a live display of wind speed with gust capture, two on-board relays, and terminal blocks for easy connection.
Suitable for fountains, awnings, solar panel control, and more...

NOTE: the WindAlarm & Switch is a device to switch things on and off, including alarms; it does not actually include an alarm...

Developed in conjuction with Heliotrack

Price: $199
(wind sensor additonal)
CLICK HERE TO ORDER

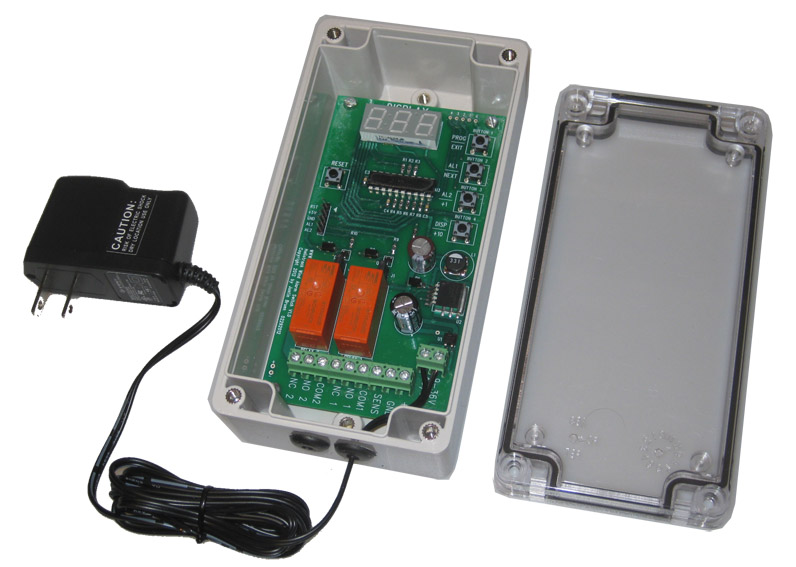

click image to enlarge

The Wind Alarm & Switch is an affordable, quality, high performance device for turning devices on and off based on the speed of the wind. It was conceived largely by solar tracking device company Heliotrack. Here are the details:

The WindController includes the following standard features:

Two independent relays rated to 250VAC/10A (data sheet here)
IMPORTANT: Use extreme caution when switching high voltages. Inspeed is not responsible for any injury or damage resulting from use of these devices.
Learn more about terms of use.
Two timer modes: time between pulses and pulses per period.
Selectable units: mph, kph, knots, feet/sec, meters/sec, and user programmable
Wind speed averaging time: If pulses/period mode is selected, variable from 2 to 60 seconds
Trigger method: either relay can be triggered by either instant or average wind speed
Trigger threshold: user programmable from 1 to 255 (instant or average wind speed)
Turn off method: manual or user programmable from 1 to 255 (instant or average wind speed)
Latch timer: if selected, can be set from 1 to 255 minutes
Clear top box
12VDC (110VAC) Power supply included
On-board 3-digit LED display
and much more!.......

Click here to see the owners manual and details of operation.

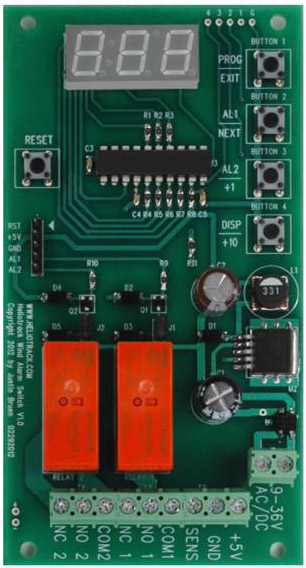

the Wind Alarm Board
click to enlarge

SENSOR TYPE	3-Cup Lexan rotor (not included). See Vortex Wind Sensor
SENSOR RANGE	Up to 125+ MPH
DISPLAY	Mounted on the board. Displays up to 255 [units]
RELAYS	Two independent relays are included Switching capacity is up to 250VAC 10Amps Click here for the data sheet on the relays
POWER	accepts 9 – 36 Volts AC or DC 12VDC power supply included, which runs on 115VAC Available 220V-115VAC optional converter
IDLE CURRENT	.020 Amps

Enclosure	The PCB and relays are mounted in a plastic enclosure intended for indoor use. Approximate dimensions 6"x4"x2"
ACCURACY	+/-4% from 10 to 50 mph or +/-1mph, whichever is greater

For a complete look at all the features and settings, please click here for the User Manual

User Manual for Version 1.1 of the Firmware. (When the unit is powered up, it will display the firmware verion for a few seconds). This firmware was implemented in January, 2013.

User Manual for Version 1.0 of the Firmware. (When the unit is powered up, it will display the firmware verion for a few seconds). This firmware was replaced with firmware version 1.1 in January, 2013.

1 year 100% warranty on any defective parts and/or any failure resulting from normal use.

And if you open the box and it is not what you wanted or expected, return it within 2 weeks in as-new condition for a 100% refund (sorry - not including shipping!).

Basically - our goal your complete satisfaction.
